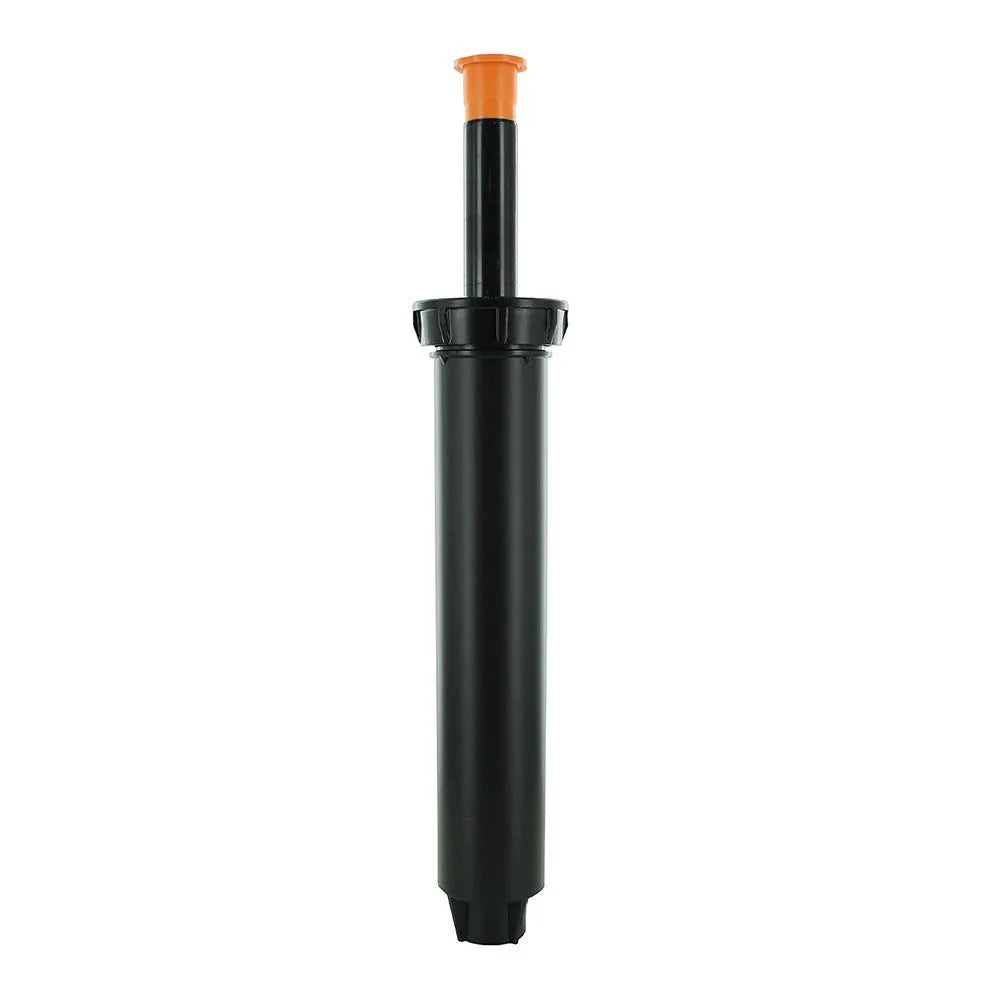

Rain Bird 1800 Spray Head 6 in. | 1806-NSI

Product Type: Spray Head
No Nozzle (Flush Plug Only)
Pop-Up Height: 6 inches
No Pressure Regulation

Operating Range

• Spacing: 2.5 to 24 feet (0.8 to 7.3m)∗
• Pressure: 15 to 70 psi (1.0 to 4.8 bar)

∗2.5 to 15 feet with standard Rain Bird Spray Head Nozzles (SQ, U-Series, HE-VAN); 8 to 24 feet with Rain Bird Rotary Nozzles

Dimensions

• ½” (15/21) NPT female threaded inlet
• Models and height:
• 1802: 4” (10.2 cm) body height; 2” pop-up height (5.1 cm)
• 1803: 4&trac78;” (12 cm) body height; 3” pop-up height (7.6 cm)
• 1804, 1804CA: 6” (15.2 cm) body height; 4” pop-up height (10.2 cm)
• 1806: 9⅜” (23.8 cm) body height; 6” pop-up height (15.2 cm)
• 1812: 16” (40.6 cm) body height; 12” pop-up height (30.5 cm)
• Exposed surface diameter: 2¼” (5.7 cm)

Product Details

The 1800 Series accepts all Rain Bird spray nozzles.

• Flow-by: 0 gpm at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m³/h; 0.36 l/m) otherwise

The sprinkler body, stem, nozzle and screen shall be constructed of heavy-duty, ultra-violet resistant plastic. It shall have a heavy-duty stainless steel retract spring for positive pop-down and a ratcheting system for easy alignment of the pattern. The sprinkler shall have a soft elastomer pressure-activated co-molded wiper seal for cleaning debris from the pop-up stem as it retracts into the case to prevent the sprinkler from sticking up to minimize ”flow-by.”

1806NSI should only be available in Florida, Texas, and the Southeast region.
